AC Compressor Assy 38800-PH3-013, 38800PH3013 for Honda Accord
OE 38800-PH3-013, 38800PH3013
FIVER AUTOPARTS CO.,LTD
Products A/C compressor
AC Compressor for vehicle 447220-4340 447220-3276 447220-3275 88320-33160 88320-48030 for CAMRY VISTA AURION MCV30 2001-2006 MCV31 2003-2006 LEXUS ES MCV30 2001-2006 MCV31 2003-2006 WINDOM MCV30 2001-2006
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

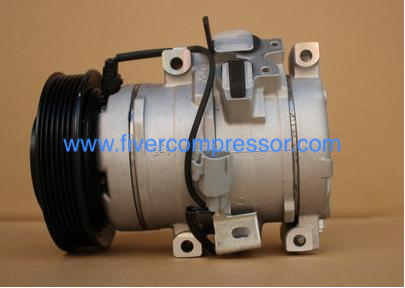

Part Name: AC Compressor
OE/ Cross Reference: 447220-4340 447220-3276 447220-3275 88320-33160 88320-48030
Applications:
CAMRY/ VISTA/ AURION
MCV30 2001-2006
MCV31 2003-2006
LEXUS ES
MCV30 2001-2006
MCV31 2003-2006
WINDOM
MCV30 2001-2006
MCV30L-AEAGKA
Year 2003 - 2006
Sales region U.S.A. Frame MCV30 grade XLE ENGINE 1MZFE TRANSMISSION ATM PRODUCT JPP Model CAMRY (JPP/NAP/SED/WG) From 01.2003 To 01.2006 Gear Shift Type 5FC Vehicle Model Camry
MCV30L-AEANKA
Year 2003 - 2006
Sales region U.S.A. Frame MCV30 grade LE ENGINE 1MZFE TRANSMISSION ATM PRODUCT JPP Model CAMRY (JPP/NAP/SED/WG) From 01.2003 To 01.2006 Gear Shift Type 5FC Vehicle Model Camry
MCV30L-AEPGKW
Year 2001 - 2006
Sales region Europe Frame MCV30 grade XLE ENGINE 1MZFE TRANSMISSION ATM Model CAMRY (JPP/NAP/SED/WG) From 08.2001 To 01.2006 Vehicle Model Camry Driver's Position LHD
MCV30R-AEPGKW
Year 2001 - 2006
Sales region Europe Frame MCV30 grade XLE ENGINE 1MZFE TRANSMISSION ATM Model CAMRY (JPP/NAP/SED/WG) From 09.2001 To 01.2006 Vehicle Model Camry Driver's Position RHD
MCV30R-JEPEKT
Year 2004 - 2006
Sales region General Frame MCV30 grade 30V ENGINE 1MZFE TRANSMISSION ATM DESTINATION TH Model CAMRY (JPP/NAP/SED/WG) From 05.2004 To 08.2006 Gear Shift Type 4FC Vehicle Model Camry Driver's Position RHD
MCV30L-JEAEKU
Year 2004 - 2006
Sales region General Frame MCV30 grade 30V ENGINE 1MZFE TRANSMISSION ATM DESTINATION VN Model CAMRY (JPP/NAP/SED/WG) From 07.2004 To 11.2006 Gear Shift Type 5FC Vehicle Model Camry Driver's Position LHD
MCV31L-AEASKA
Year 2003 - 2006
Sales region U.S.A. Frame MCV31 grade SE ENGINE 3MZFE TRANSMISSION ATM PRODUCT JPP Model CAMRY (JPP/NAP/SED/WG) From 07.2003 To 01.2006 Gear Shift Type 5FC Vehicle Model Camry MCV30R-BEAGKQ
Year 2001 - 2006
Sales region General Frame MCV30 ENGINE 1MZFE DESTINATION ARL Model ES300 From 07.2001 To 03.2006 Vehicle Model ES300 Driver's Position RHD
MCV31L-BEAGKA
Year 2003 - 2006
Sales region U.S.A. Frame MCV31 ENGINE 3MZFE TRANSMISSION ATM Model ES330 From 07.2003 To 03.2006 Vehicle Model ES330
MCV30-BEAGK
Year 2001 - 2006
Sales region Japan Frame MCV30 grade 30G ENGINE 1MZFE From 07.2001 To 03.2006 Vehicle Model WINDOM
MCV30-BEANK
Year 2001 - 2006
Sales region Japan Frame MCV30 grade 30X ENGINE 1MZFE From 07.2001 To 03.2006 Vehicle Model WINDOM
