FIVER AUTOPARTS CO.,LTD

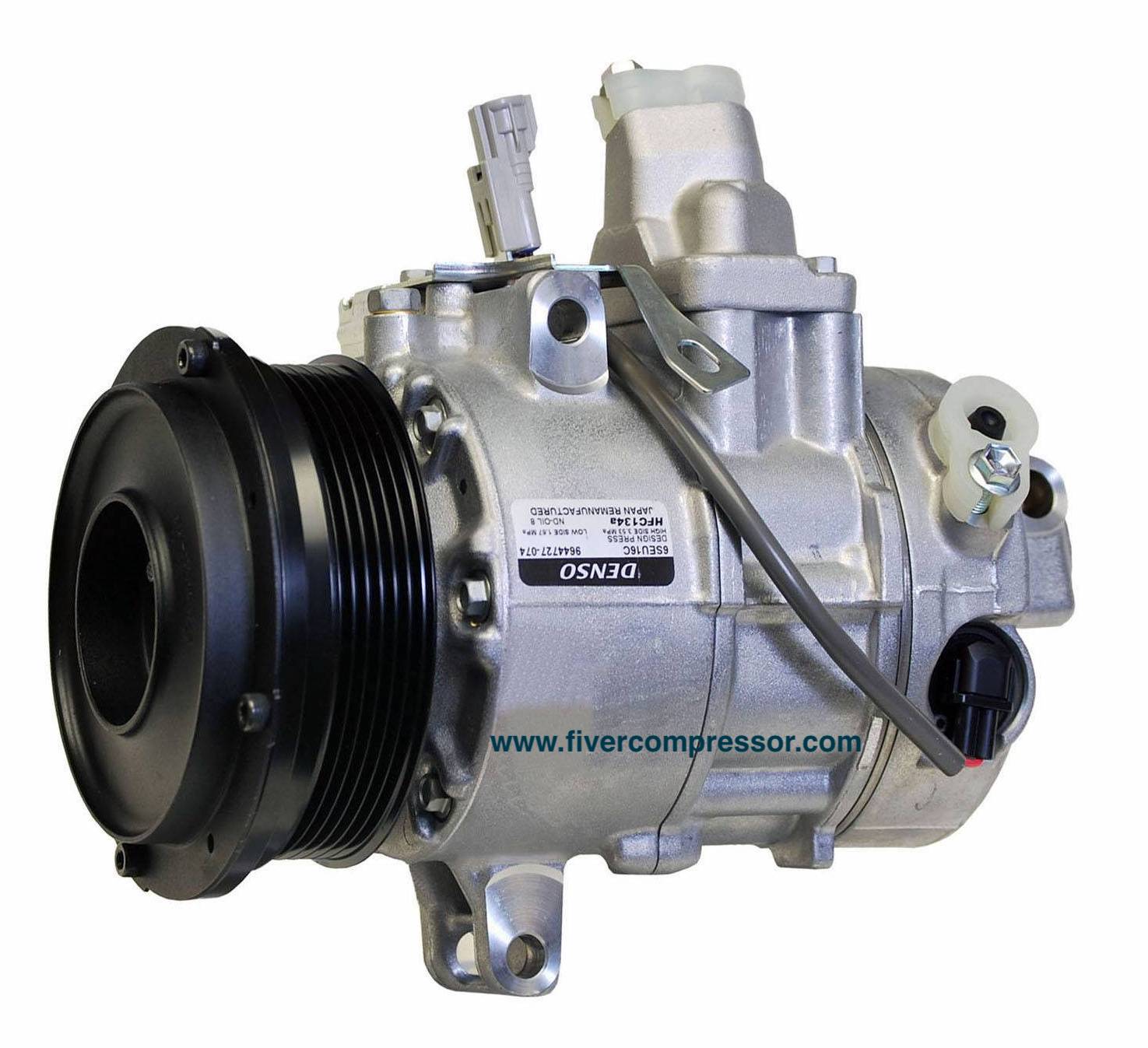

Toyota A/C compressor

AC Compressor 4471905100, 4710570, 883103A540 for Lexus GS430(UZS190) 4.3L V8 2005-2008
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

AC Compressor 4471905100, 4710570, 883103A540 for Lexus GS430(UZS190) 4.3L V8 2005-2008

OE / Part number
4471905100, 4710570, 883103A540

AC Compressor 4471905100, 4710570, 883103A540 for Lexus GS430(UZS190) 4.3L V8 2005-2008

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelAC Compressor for Lexus GS430 UZS190 / Lexus GS430 UZS190 AC Compressor / ac compressor for Lexus / air conditioning compressor for Lexus
OE / Part number4471905100, 4710570, 883103A540
ApplicationApplications: Lexus GS430

§ 03

Product details

AC Compressor 4471905100, 4710570, 883103A540 for Lexus GS430(UZS190) 4.3L V8 2005-2008

Applications:

Lexus GS430

UZS190-BETQKYear 2005 - 2007Sales region Japan Frame UZS190 ENGINE 3UZFE TRANSMISSION ATM Model GS430 From 08.2005 To 09.2007 Vehicle Model GS430

UZS190L-BETQKAYear 2005 - 2007Sales region U.S.A. Frame UZS190 ENGINE 3UZFE TRANSMISSION ATM Model GS430 From 01.2005 To 09.2007 Vehicle Model GS430

UZS190L-BETQKWYear 2005 - 2008Sales region Europe Frame UZS190 ENGINE 3UZFE DESTINATION EUR Model GS430 From 01.2005 To 09.2008 Vehicle Model GS430Driver's Position LHD

UZS190L-BETQKWYear 2005 - 2008Sales region General Frame UZS190 ENGINE 3UZFE DESTINATION EUR Model GS430 From 01.2005 To 09.2008 Vehicle Model GS430Driver's Position LHD

Specifications:

Refrigerant Type R134a
Clutch Maximum Diameter 115.0 MM
Compressor Mount Hole Quantity 3
Pulley Belt Type Serpentine
Mounting Type Bolt Tangent
Alternate/OEM Part Number(s): 4471905100, 4710570, 883103A540
