Products 10S17C A/C compressor

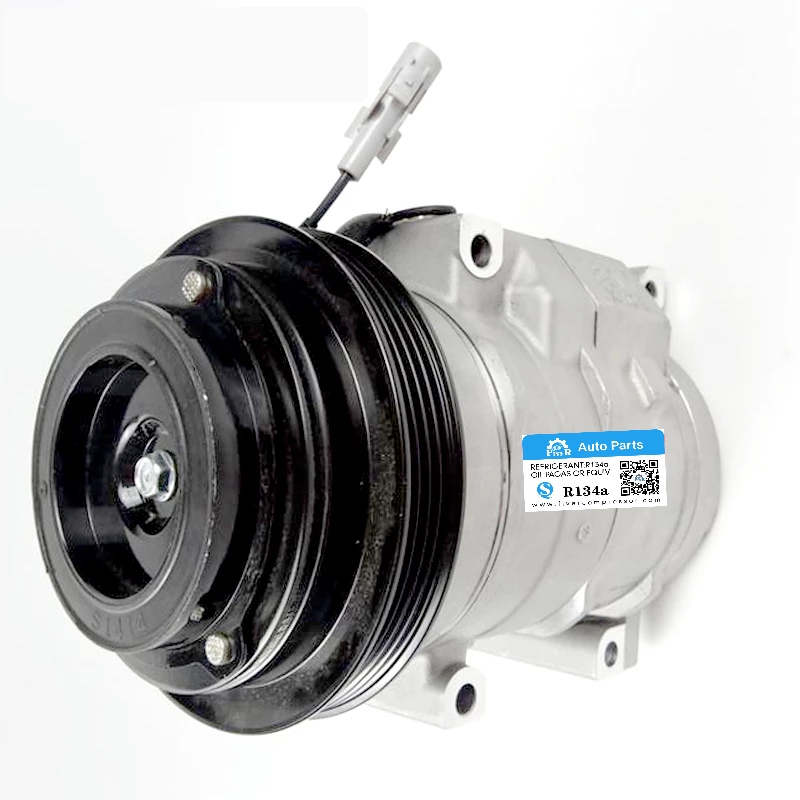

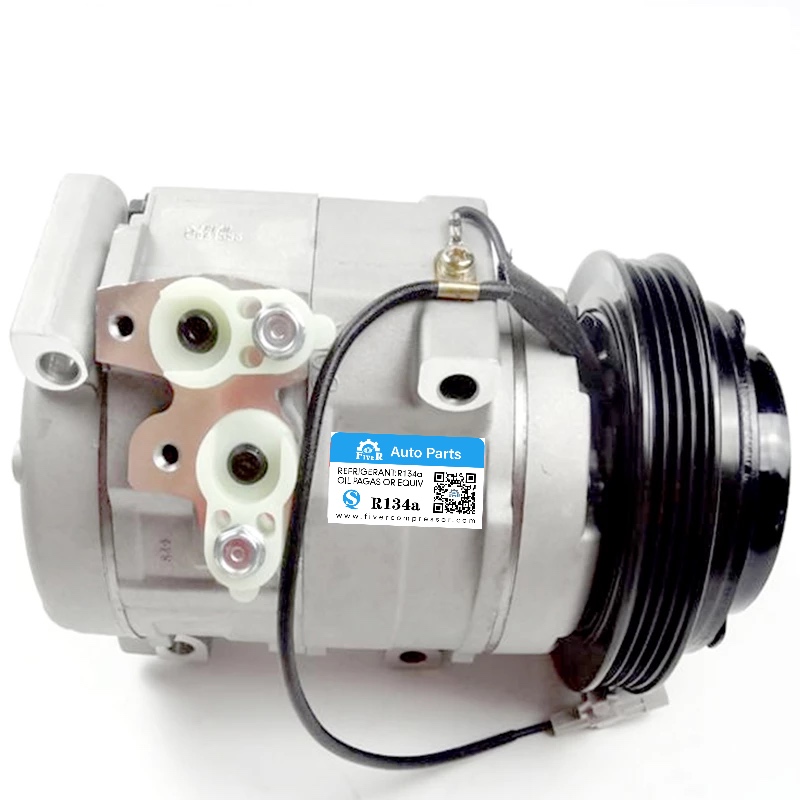

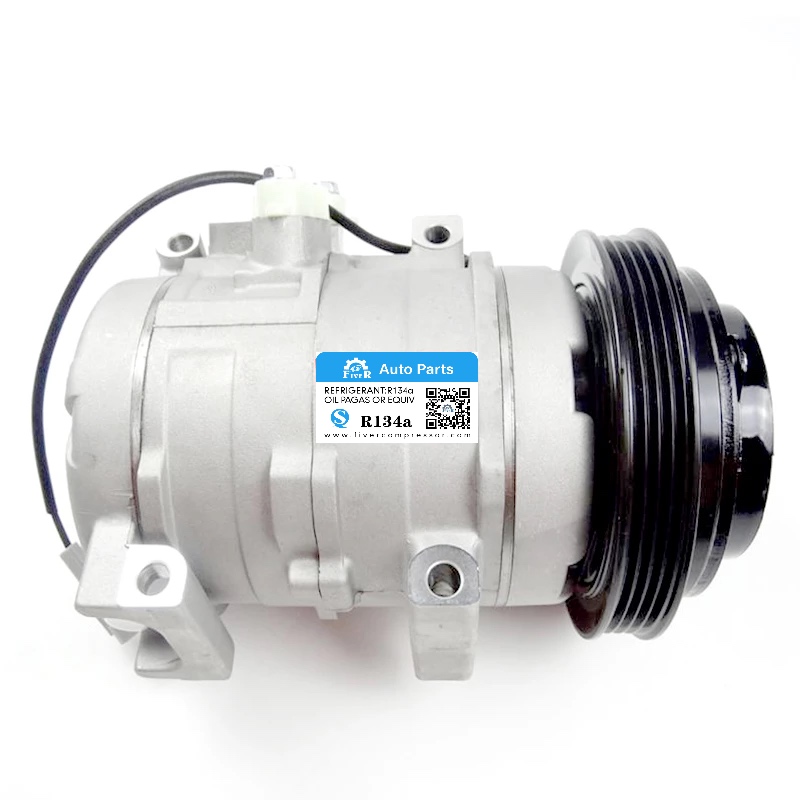

10S17C 4PK Air Conditioning Compressor 88320-35710, 8832035710,88320-6A160,883206A170 for Toyota Land Cruiser Prado 120 KZJ120 3.0L 2002-2009 VZJ120/VZJ125 3.4L 2002-2005 for Toyota HILUX SURF/ 4RUNNE

OE / Part number
88320-35710, 8832035710, 88320-6A160

This Compressor is a a replacement for 88320-35710, 8832035710,88320-6A160 for Toyota Land Cruiser Prado KZJ120 3.0L 2002-2009 VZJ120/VZJ125 3.4L 2002-2005 for Toyota HILUX SURF/ 4RUNNER KZN215 3.0L VZN210/VZN215 3.4L 2002-2005

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10S17C
Groove4PK

Clutch and fitment

Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10S17C
Groove4PK
Voltage12V
OE / Part number88320-35710, 8832035710, 88320-6A160
ApplicationApplications: TOYOTA

§ 04

Product details

10S17C 4PK Air Conditioning Compressor 88320-35710, 8832035710,88320-6A160,883206A170 for Toyota Land Cruiser Prado 120 KZJ120 3.0L 2002-2009 VZJ120/VZJ125 3.4L 2002-2005 for Toyota HILUX SURF/ 4RUNNER KZN215 3.0L 2002-2005; VZN210/VZN215 ENGINE1KZTE 3.4L 2002-2005

Specifications:

Clutch Model :10S17CAC Compressor

Pulley Grooves: 4 Grooves

Voltage:12V

Pulley Diameter: 135mm


Applications:

TOYOTA

HILUX SURF/ 4RUNNER

KZN215L-GKPGT | FrameKZN215gradeSR5RoofSRF | ENGINE1KZTE 3.0L | 11.2002To08.2005 | ATM | 4FC | LHD |

KZN215L-GKPZT | FrameKZN215gradeLIMDRoofSRF | ENGINE1KZTE | 11.2002To08.2005 | ATM | 4FC | LHD |

VZN210W-GKPXK | FrameVZN210gradeSSRX | ENGINE5VZFE | 11.2002To08.2005 | ATM | 4FC |

VZN215W-GKPGK | FrameVZN215gradeSSRG |ENGINE5VZFE | 11.2002To08.2005 |ATM | 4FC |

VZN215W-GKPXK | FrameVZN215gradeSSRX | ENGINE5VZFE | 11.2002To08.2005 |ATM | 4FC |

LAND CRUISER PRADO 120

KZJ120L-GKMGT | KZJ120L-GKPGT | FrameKZJ120gradeVX | ENGINE1KZTE | 09.2002To08.2009 | 5 Doors | LHD |

KZJ120R-GKMETQ | KZJ120R-GKPETQ | FrameKZJ120gradeGX |ENGINE1KZTE | 09.2002To08.2009 | 5 Doors | LHD |

VZJ120W-GKPEK | FrameVZJ120gradeTX |ENGINE5VZFE | 09.2002To08.2005 | 4FC | 5 Doors | LHD |

VZJ125W-GJPGK | FrameVZJ125gradeRZ | ENGINE5VZFE | 09.2002To08.2005 | 4FC | 5 Doors | LHD |


Compressor Manufacture Part No.:

88320-6A160, 88320-6A170, 88410-2F010, 883206A160 883206A170, 884102F010,88320 6A160, 883206A170, 88410 2F010, 447220-5190, 88320-35710,8832035710
