AC Compressor Assy 38800-PH3-013, 38800PH3013 for Honda Accord
OE 38800-PH3-013, 38800PH3013
FIVER AUTOPARTS CO.,LTD
Products A/C compressor
1PK · 12V
Our compressors are made exceeding the OE quality standards, and 100% tested before leaving the factory, this Compressor is a perfect replacement for Toyota Land Cruiser FZJ80 L6 4.5L 1993-1997 and Lexus LX450 FZJ80 1995-1998
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04

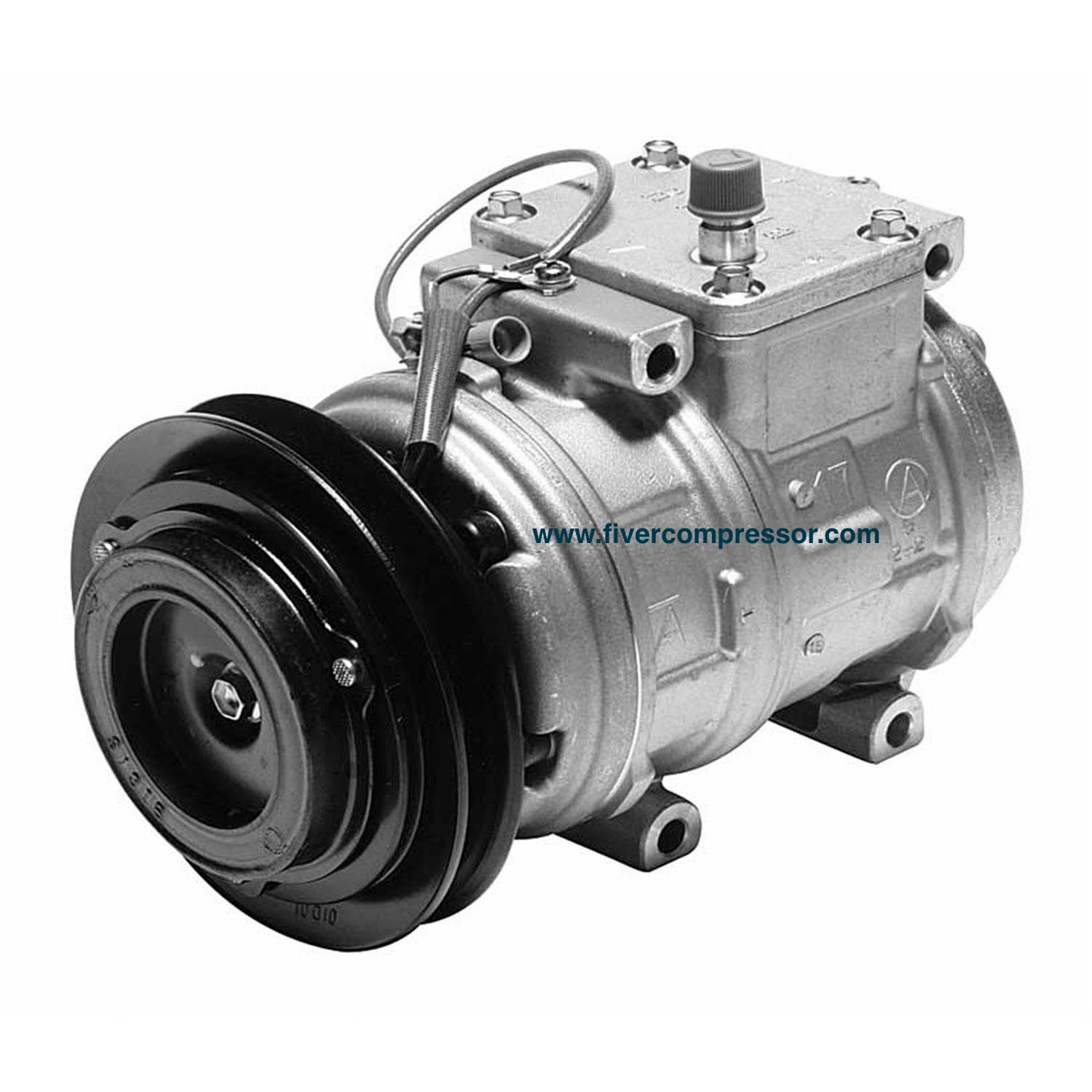

10PA17C A/C Compressor 4711166,8831060720,8832060580,88310-60720, 88320-60580 for Toyota Land Cruiser FZJ80 L6 4.5L 1993-1997 and Lexus LX450 FZJ80 1995-1998

| Specifications | |
|---|---|
| Refrigerant Type | R134a |
| Clutch Maximum Diameter | 130.0 MM |
| Compressor Mount Hole Quantity | 4 |
| Pulley Belt Type | V-Belt 1PK |
| Mounting Type | Bolt Tangent |
Make Model Engine Year
TOYOTA LAND CRUISER FZJ80 ENGINE1FZF L6 4.5L 1993-1997
LEXUS LX450 FZJ80 ENGINE1FZF L6 4.5L1995-1998
Alternate/OEM Part Number(s): 254516, 275681, 4471003370, 4711166, 8831060720, 8832060580
