Products 10PA15L A/C compressor

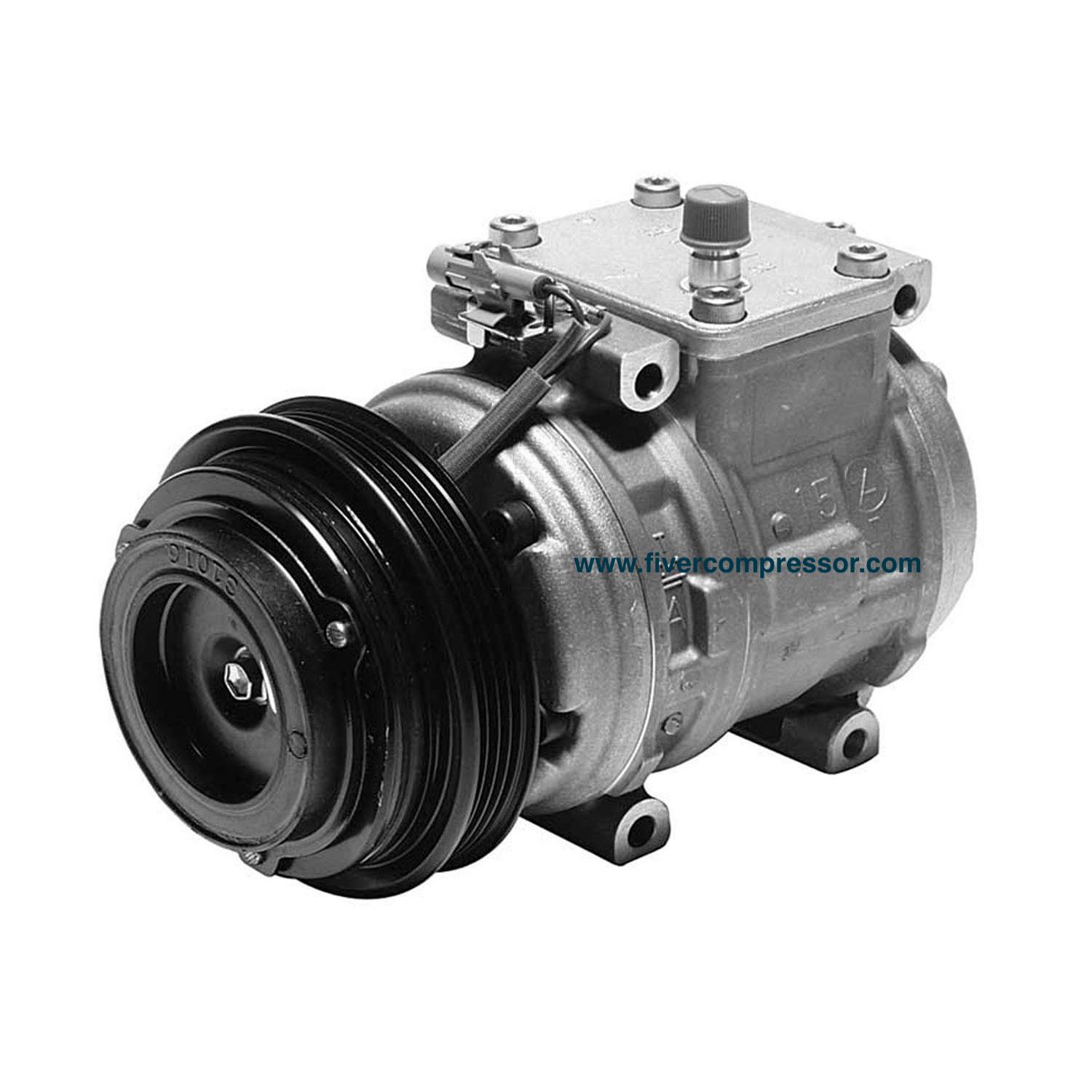

10PA15L-4PK-12V Air Conditioning Compressor 4711218,883100C020,8831034040,883200C020,8832034030,8832060H91 for Toyota T100 1995-1998 for Toyota Tundra 2000-2004 V6/V8

OE / Part number
4711218, 883100C020, 8831034040, 883200C020, 8832034030, 8832060H91, 254301, 275651, 4471006710, 4471704760, 4710218, 4710328

This Compressor is OE Quality Replacement for Air Conditioning Compressor 4711218,883100C020,8831034040,883200C020, 8832034030,8832060H91 for Toyota T100 1995-1998 for Toyota Tundra 2000-2004 V6/V8

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Type10PA15L
Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Type10PA15L
Groove4PK
Coil Voltage12V
OE / Part number4711218, 883100C020, 8831034040, 883200C020, 8832034030, 8832060H91, 254301, 275651, 4471006710, 4471704760, 4710218, 4710328
ApplicationApplications: Make Model Engine Year

§ 04

Product details

10PA15L-4PK-12V Air Conditioning Compressor 4711218 883100C020 8831034040 883200C020 8832034030 8832060H91 for Toyota T100 1995-1998 L4 2.7L and V6 3.4L for Toyota Tundra SR5 2000-2004 V6 3.4L and V8 4.7L

Specifications
Refrigerant TypeR134a
Clutch Maximum Diameter120.0 MM
Compressor Mount Hole Quantity4
Pulley Belt TypeSerpentine 4PK
Mounting TypeBolt Tangent
Applications:

Make Model Engine Year

Toyota T100 BASE L4, 2.7L 1995-1998

Toyota T100 BASE V6, 3.4L 1995/1998

Toyota T100 DLX V6, 3.4L 1996-1997

Toyota T100 DX V6, 3.4L 1998

Toyota T100 ONE-TON DLXV6, 3.4L 1995

Toyota Tundra BASE V6, 3.4L 2000-2004

Toyota Tundra LIMITED V8, 4.7L 2000-2004

Toyota Tundra SR5 V6,3.4L/V8, 4.7L 2000-2004


Alternate/OEM Part Number(s): 254301, 275651, 4471006710, 4471704760, 4710218, 4710328,4711218, 883100C020, 8831034040, 883200C020, 8832034030, 8832060H91
